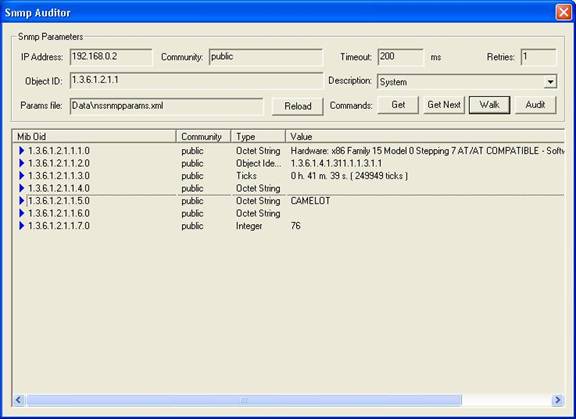

SNMP Auditor is a tool to scan a
network and identify any nodes that are running an SNMP service. The Snmp Parameters contain:
IP Address - the IP
address of the target host
Community - the Snmp
Community
Object ID – the already
registered object id
Timeout - the timeout
interval
Retries – the number of
probes
Description – description
type
Params file – the file
that contains Snmp parameters in XML format. To reload the file click on the Reload
button.

Here is the list of commands supported by Snmp Auditor:
Get - gets the first object parameters matching the
selected object ID.
Get Next – gets the next object parameters matching
the selected object ID.
Walk - walks through all nodes of the selected
object ID.
Audit – starts the audit process of Community names.
To select one of the listed commands click on the
appropriate button.
The results table will contain Mib Obid, Community
, Type, Value.
Right- clicking on the results table brings up a menu with
the following commands:
Save As – saves the data to the text file.
Copy All - copies all rows.
Close – closes the Snmp auditor. |
